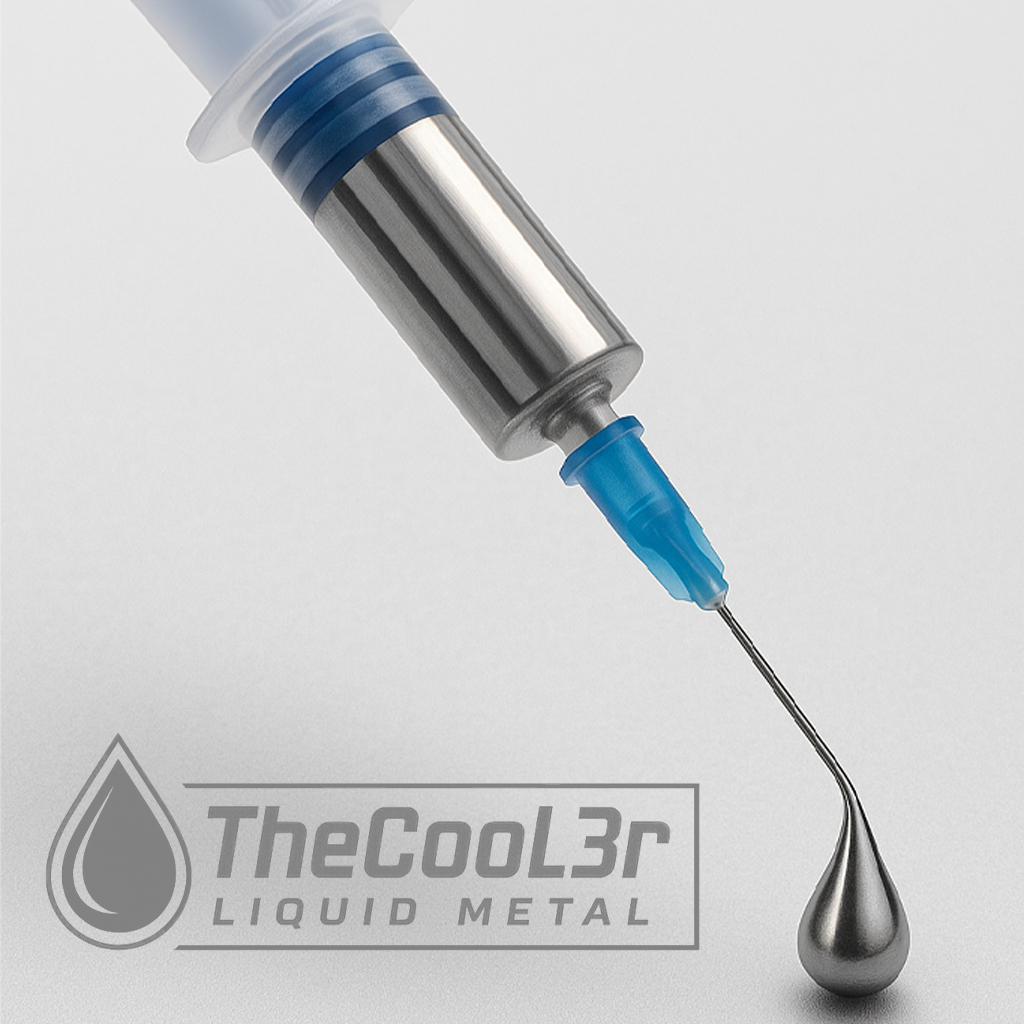

TheCool3r Liquid Metal | High Performance 73 W/m-k Thermal Compound for PlayStation 5 (by TheCod3r)

Just because it's branded, it doesn't make it cool!

Introducing TheCool3r Liquid Metal by TheCod3r, which has been specially designed to keep your PlayStation 5 console running smoothly.

With performance on par, if not better than Sony's official liquid metal, this liquid metal formula is the perfect choice when you need to replace the liquid metal in your own, or your customer's console.

But it's not just designed for PS5s! TheCool3r can be used on any device with a copper heatsink and sufficient protection around exposed components.

Technical Datasheet: https://drive.google.com/file/d/1roUwgwPy9MRD5TbZGR2d1M_EKylFJ-J0/view?usp=sharing

Caution: Do not use liquid metal on devices with aluminium heatsinks or PCBs. Liquid metal is highly corrosive to aluminium and will damage your device.

TheCool3r Liquid Metal – Technical Datasheet
Manufacturer: TheCod3r
Intended Use: High-performance thermal interface material for PlayStation 5 APU and heatsink assemblies.
1. Composition (approximate weight %)
Gallium (Ga) 68–70%
Indium (In) 20–22%
Tin (Sn) 8–10%
2. Technical Specifications
Thermal Conductivity ~73 W/m·K At 25 °C
Electrical Resistivity ~29 μΩ·cm Highly conductive
Density 6.44 g/cm³ At 20 °C
Viscosity 2.4 mPa·s Low viscosity liquid
Melting Point −19 °C Remains liquid at 0 °C
Operating Temp. Range −10 °C to +200 °C Long-term stable
Shelf Life 24 months Airtight storage
5. Safety & Handling
Hazard Identification:
- Non-toxic in small quantities, but can cause skin irritation.
- Reacts with aluminum (corrosive effect).
Handling Precautions:
- Use gloves, eye protection, and non-porous applicators.
- Avoid contact with clothing & porous materials.
Storage Conditions:
- Store in airtight syringe/container.
- Room temperature (15–25 °C), away from humidity.
First Aid:
- Skin contact: Wash with soap and water.
- Eye contact: Rinse with water, seek medical advice if irritation persists.
- Ingestion: Do not induce vomiting, seek immediate medical help.
7. Regulatory Compliance
• RoHS Compliant
• REACH Compliant
